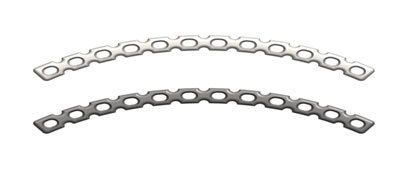

| CURVED RECONSTRUCTION PLATE 3.50mm |
|
|
 |
| • |
Thickness |
: |
3.0mm |
| • |
Width |
: |
10.0mm |
| • |
Locking Hole Dia |
: |
4.0 x 5.75mm |
| • |
Supporting Hole Dia |
: |
12mm |
| • |
Hole to Hole distance |
|
12mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 6 Holes |
2.014.006 |
70mm |
13 Holes |
2.014.013 |
154mm |
| 7 Holes |
2.014.007 |
82mm |
14 Holes |
2.014.014 |
166mm |
| 8 Holes |
2.014.008 |
94mm |
15 Holes |
2.014.015 |
178mm |
| 9 Holes |
2.014.009 |
106mm |
16 Holes |
2.014.016 |
190mm |
| 10 Holes |
2.014.010 |
118mm |
17 Holes |
2.014.017 |
202mm |
| 11 Holes |
2.014.011 |
130mm |
18 Holes |
2.014.018 |
214mm |
| 12 Holes |
2.014.012 |
142mm |
|
|
|
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.014.006 |
|
|
|
| |
|
| |
|

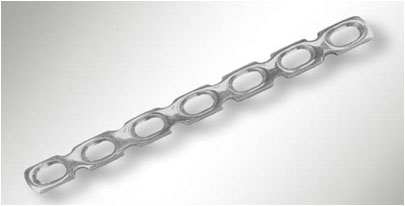

| STRAIGHT RECONSTRUCTION PLATE 3.5mm |
|
|
 |
| • |
Thickness |
: |
3.0mm |
| • |
Width |
: |
10.0mm |
| • |
Hole size |
: |
4.0 x 5.75mm |
| • |
Hole to Hole distance |
: |
12mm |
| • |
Available Material |
: |
S.S.316L / Titanium |
|
|
|
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
NO. OF HOLES |
CATALOGUE NO. |
TOTAL LENGTH |
| 5 Holes |
2.015.005 |
58mm |
13 Holes |
2.015.013 |
154mm |
| 6 Holes |
2.015.006 |
70mm |
14 Holes |
2.015.014 |
166mm |
| 7 Holes |
2.015.007 |
82mm |
15 Holes |
2.015.015 |
178mm |
| 8 Holes |
2.015.008 |
94mm |
16 Holes |
2.015.016 |
190mm |
| 9 Holes |
2.015.009 |
106mm |
18 Holes |
2.015.018 |
214mm |
| 10 Holes |
2.015.010 |
118mm |
20 Holes |
2.015.020 |
238mm |
| 11 Holes |
2.015.011 |
130mm |
22 Holes |
2.015.022 |
262mm |
| 12 Holes |
2.015.012 |
142mm |
24 Holes |
2.015.024 |
286mm |
IN TITANIUM PRODUCTS : ADD "Ti." BEFORE CATALOGUE NO. Example Ti.2.014.006 |
|
|
|
| |
|
